How To Use Trigger 2 in Pro Tools

This article will go over three different workflows for using Trigger 2 in Pro Tools:

  1. Inserting Trigger directly on the source track and using the mix knob
  2. Duplicating the source track and inserting Trigger
  3. Using MIDI


1. Inserting Trigger directly on the source track and using the mix knob

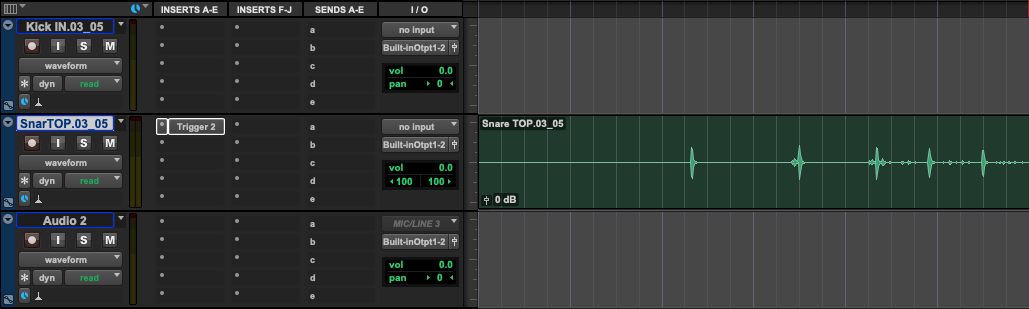

The simplest workflow for using Trigger in Pro Tools, is to insert Trigger 2 directly on the track with the audio you wish to trigger samples from. Screen Shot 2023-08-18 at 10.23.50 AM.png

Users can then use the Mix knob in the Trigger plug-in to control the blend between the source audio, and the Trigger samples.

Screen Shot 2023-08-18 at 10.19.34 AM.png


2. Duplicating the source track and inserting Trigger

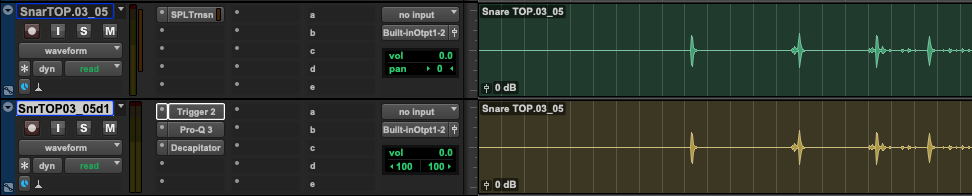

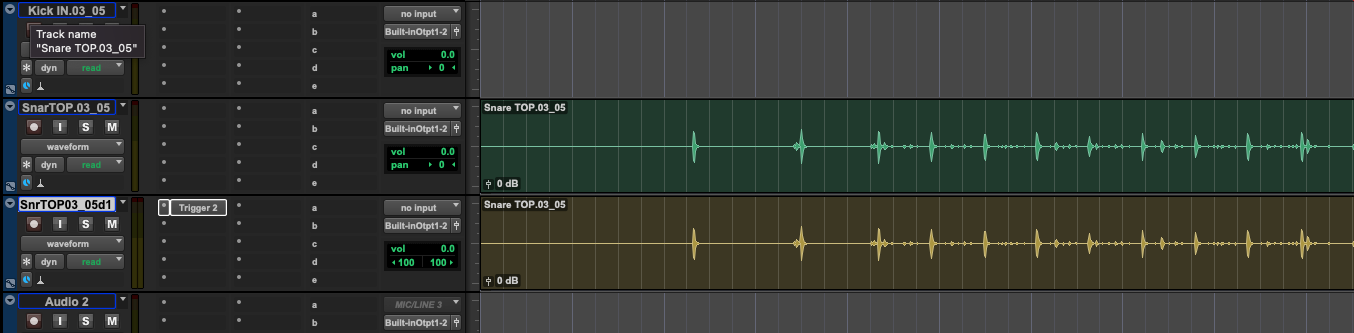

Select your source audio track. Then in Menu Bar, go to Track → Duplicate. Then insert Trigger 2 on the duplicate track.

Screen Shot 2023-08-18 at 10.31.12 AM.png


With this method, users can process their added samples, separately from the source audio. Users will want to make sure the Mix knob in the Trigger plug-in is set to 100%, with this method.

Screen Shot 2023-08-18 at 10.33.09 AM.png


3. Using MIDI

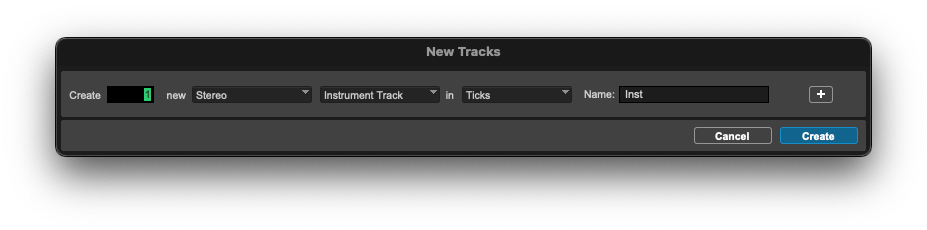

Users can also use Trigger 2 with MIDI data. Go to Track → New. Then from the "New Tracks" menu, make sure to choose a "Stereo" and  "Instrument Track".


Screen Shot 2023-08-03 at 1.19.09 PM.png

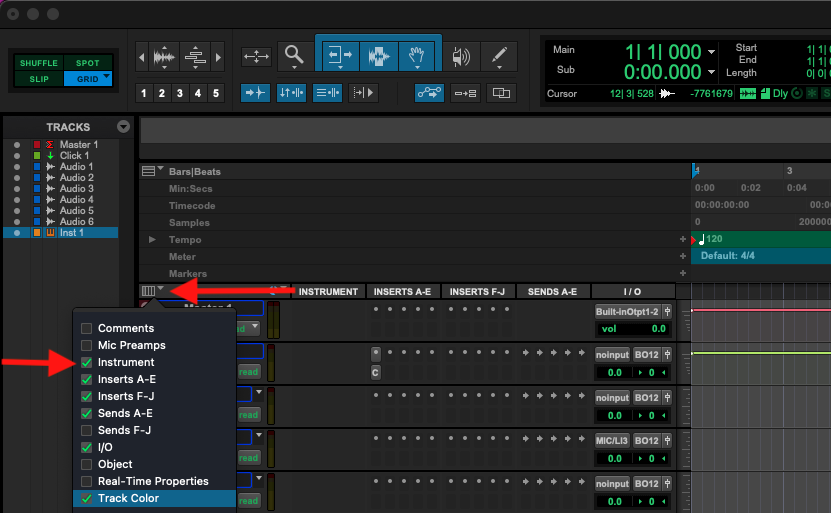

Next, click on the Window View Selector, and make sure "Instruments is checked.

Screen Shot 2023-08-03 at 1.25.39 PM.png

Users will notice a new section appear on their Instrument track. Click on the first insert on your instrument track. Then locate and select Trigger 2.

Screen Shot 2023-08-03 at 1.22.02 PM.png

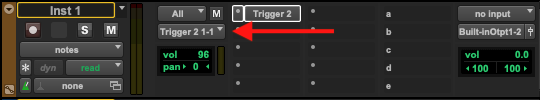

Next, go back to the "Instrument" Section on your Instrument track. Click where it says "None", then select "Inst - Trigger 2" and "Channel 1".

Screen Shot 2023-08-18 at 10.49.03 AM.png

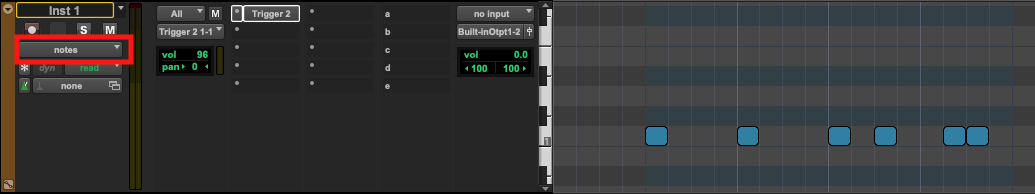

Go to the Track View Selector and make sure "notes" is selected. Now users can write MIDI data for Trigger 2.

Screen Shot 2023-08-18 at 10.51.06 AM.png

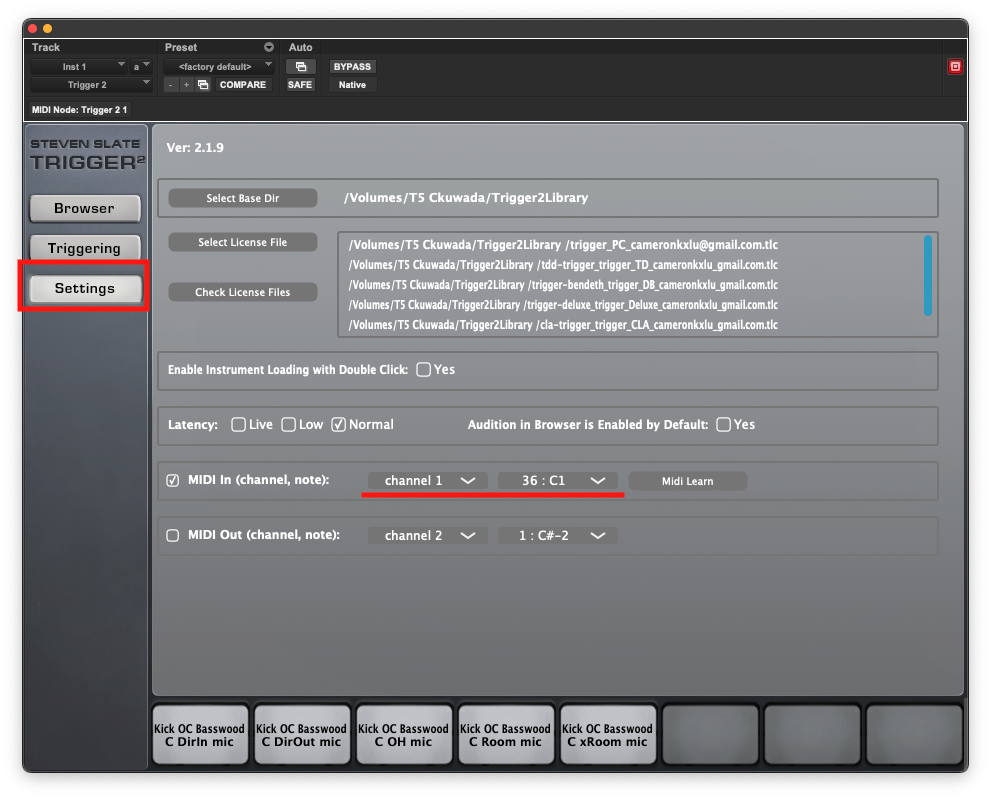

Open your Trigger 2 plug-in, and go to the "Settings" tab. Make sure "MIDI In" is checked. Then select the note that you wish to use to write MIDI data. And select "Channel 1" for the MIDI channel.

Screen Shot 2023-08-18 at 10.59.42 AM.png

NOTE: Using AUX sends to Trigger is not recommended as this can cause discrepancy in the triggers if the aux is not pre-fader.  Also, having only an Aux send removes a lot of possibilities for editing, such as cutting out a drum fill or a loud crash cymbal that may be falsely triggering a snare or kick in Trigger 2.

By instead duplicating the source track and inserting Trigger (Method 2), this opens up a lot more dynamic options.

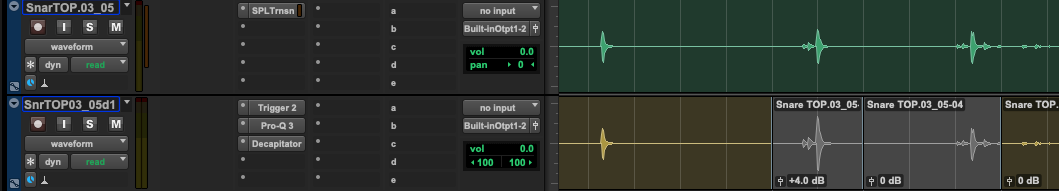

For example, with this method, users can clip gain up a low level snare hit that may not have made it through the trigger threshold.

Screen Shot 2023-08-18 at 11.09.56 AM.png

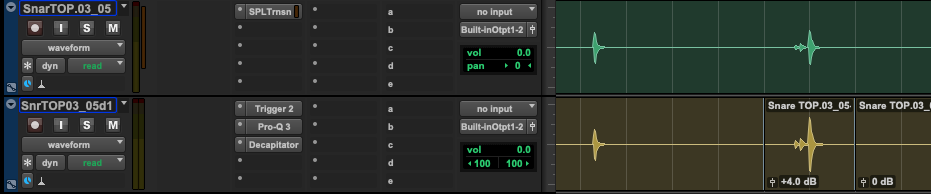

Or, you can cut out an entire piece of audio that is not supposed to be triggered.

Screen Shot 2023-08-18 at 11.10.25 AM.png
